CSC4303 Network Programming

Reference

• Reference

Network Model

Transport Layer

User Datagram Protocol (UDP)

• Connectionless

  Each packet is independent.

  Sender    Time       Receiver
    |                     |
    |----- Packet1 -----> |
    |                     |
    |----- Packet2 -----> |
    |                     |


• Buffering

  UDP buffering is a "temporary storage area" maintained by the operating system for each UDP port, where arriving packets queue up when applications can't process them immediately.

  Application A  Application B   Application C
      ↓               ↓               ↓
  [Port X]        [Port Y]        [Port Z]      ← Port mapping
      ↓               ↓               ↓
  [Queue 1]       [Queue 2]       [Queue 3]     ← Independent UDP message queues
      │               │               │
      └───────┬───────┴───────┬───────┘
              ↓               ↓
      [Port Multiplexer/Demultiplexer]          ← Routes by port number
              ↓
      [Incoming UDP packets]


• Header

  Note that the Datagram length up to 64K.

       32-bit width (4 bytes per row)
  0                  16                31
  ┌──────────────────┬──────────────────┐
  │ Source Port      │ Destination Port │ ← Port addressing
  │   (16 bits)      │   (16 bits)      │
  ├──────────────────┴──────────────────┤
  │    Length        │    Checksum      │ ← Size & integrity
  │    (16 bits)     │    (16 bits)     │
  ├─────────────────────────────────────┤
  │                                     │
  │           Application Data          │
  │                                     │
  └─────────────────────────────────────┘


Transmission Control Protocol (TCP)

• Header

  0                   1                   2                   3
  0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  |          Source Port          |       Destination Port        | ← Identifies sockets
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  |                        Sequence Number (32)                   | ← Byte-based sequencing
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  |                    Acknowledgment Number (32)                 | ← Next expected byte
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  |  Data Offset  |  0  |  Flags  |       Window Size (16)        | ← Control & flow control
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  |     Checksum (16)             |       Urgent Pointer (16)     | ← Integrity & urgent data
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  |                         Options (variable)                    |
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
  |                           Data                                |
  +-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+


  • Connection Establishment (Setup)

    • Three-Way Handshake

      Both parties send Initial Sequence Numbers (ISNs) via SYNchronize segments. Each party acknowledges the other's sequence number using ACKnowledge segments.

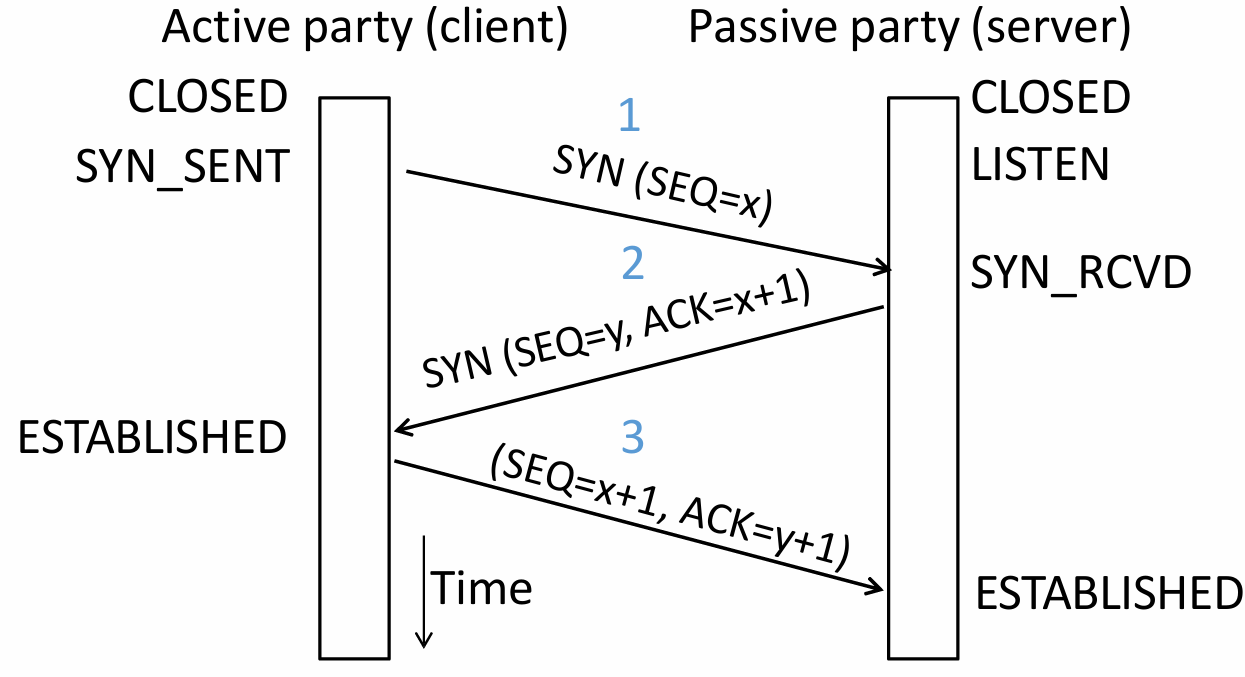

      Step	Initiator (Client)	Receiver (Server)	Description
      First Handshake	Sends $\text{SYN}=1,\text{seq}=x$	Waits for connection request	Client requests to establish a connection and sends its ISN $x$.
      Second Handshake	Waits for acknowledgment	Sends $\text{SYN}=1,\text{ACK}=1,\text{seq}=y,\text{ack}=x+1$ It acknowledges receipt through sequence number $x$.	Server agrees to connect, sends its own ISN $y$, and acknowledges the receipt of $x$.
      Third Handshake	Sends $\text{ACK}=1,\text{seq}=x+1,\text{ack}=y+1$	Connection established	Client acknowledges the receipt of $y$, and the connection is formally established.

      Three-way handshake prevents a server from wasting resources on stale or duplicate connection requests by requiring the client's final acknowledgment.

    • State Machine

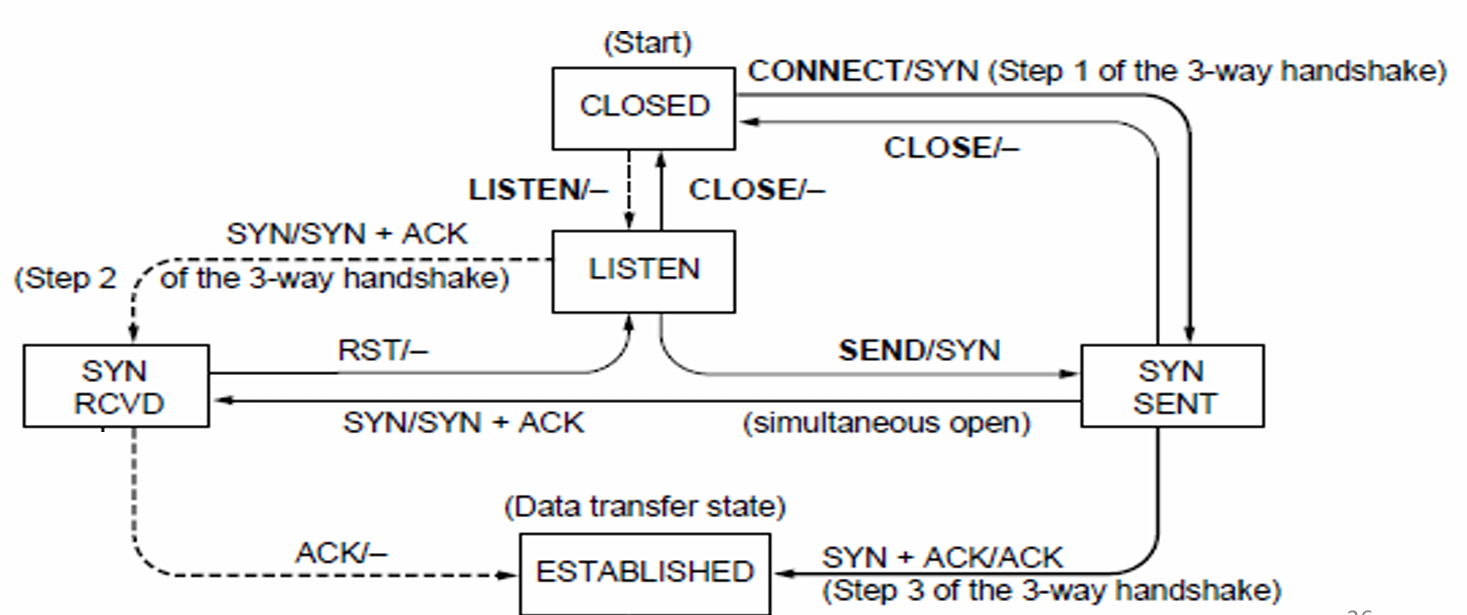

      • Client Path CLOSED → connect() → SYN_SENT → Receive SYN+ACK → ESTABLISHED

      • Server Path CLOSED → listen() → LISTEN → Receive SYN → SYN_RCVD → Receive ACK → ESTABLISHED

      • Both parties run instances of this state machine, and TCP allows for simultaneous open.

  • Connection Release (Teardown)

    • Four-Way Handshake (symmetric)

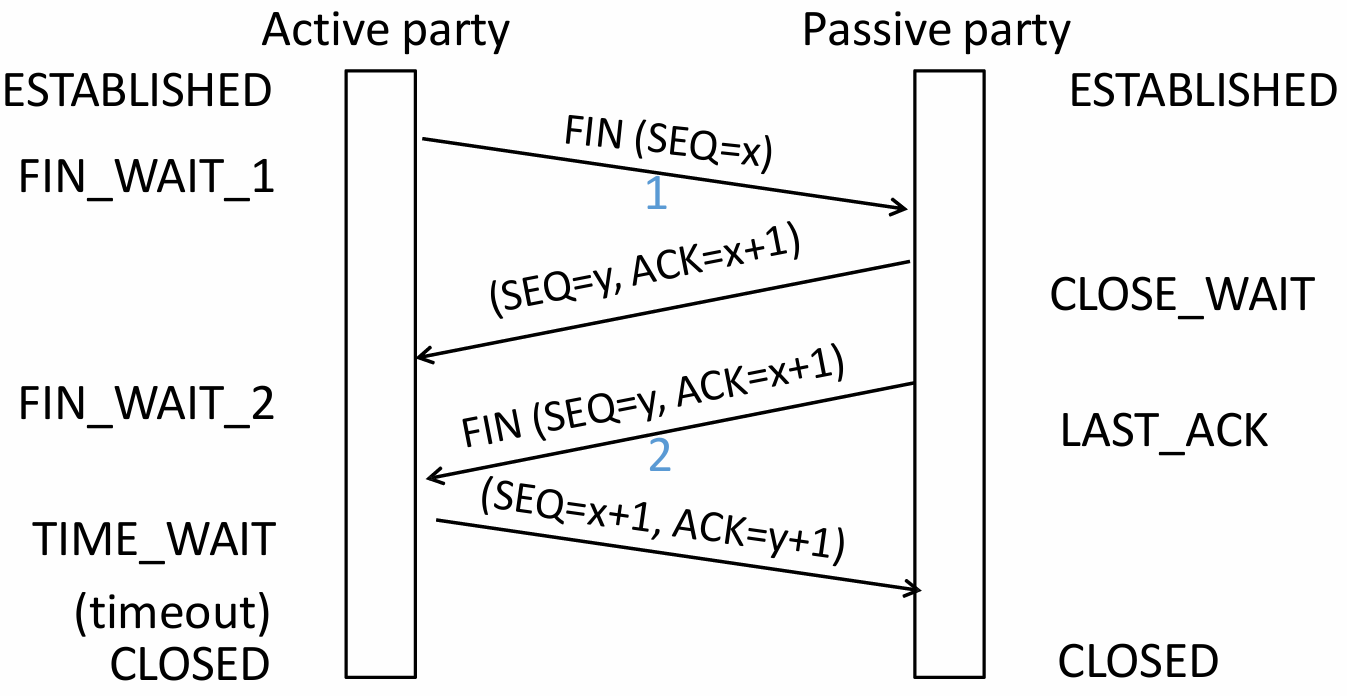

      Step	Initiator (Active Closer)	Receiver (Passive Closer)	Description
      First Wave	Sends $\text{FIN}=1,\text{seq}=u$	Waits for close request	Initiator has finished sending data and requests to close its sending channel.
      Second Wave	Waits for remaining data	Sends $\text{ACK}=1,\text{ack}=u+1$	Receiver acknowledges the close request but may still have data to send.
      Third Wave	Waits for confirmation	Sends $\text{FIN}=1,\text{seq}=v$	Receiver has finished sending data and requests to close its sending channel.
      Fourth Wave	Sends $\text{ACK}=1,\text{ack}=v+1$	Connection closed	Initiator acknowledges the close request.

    • State Machine

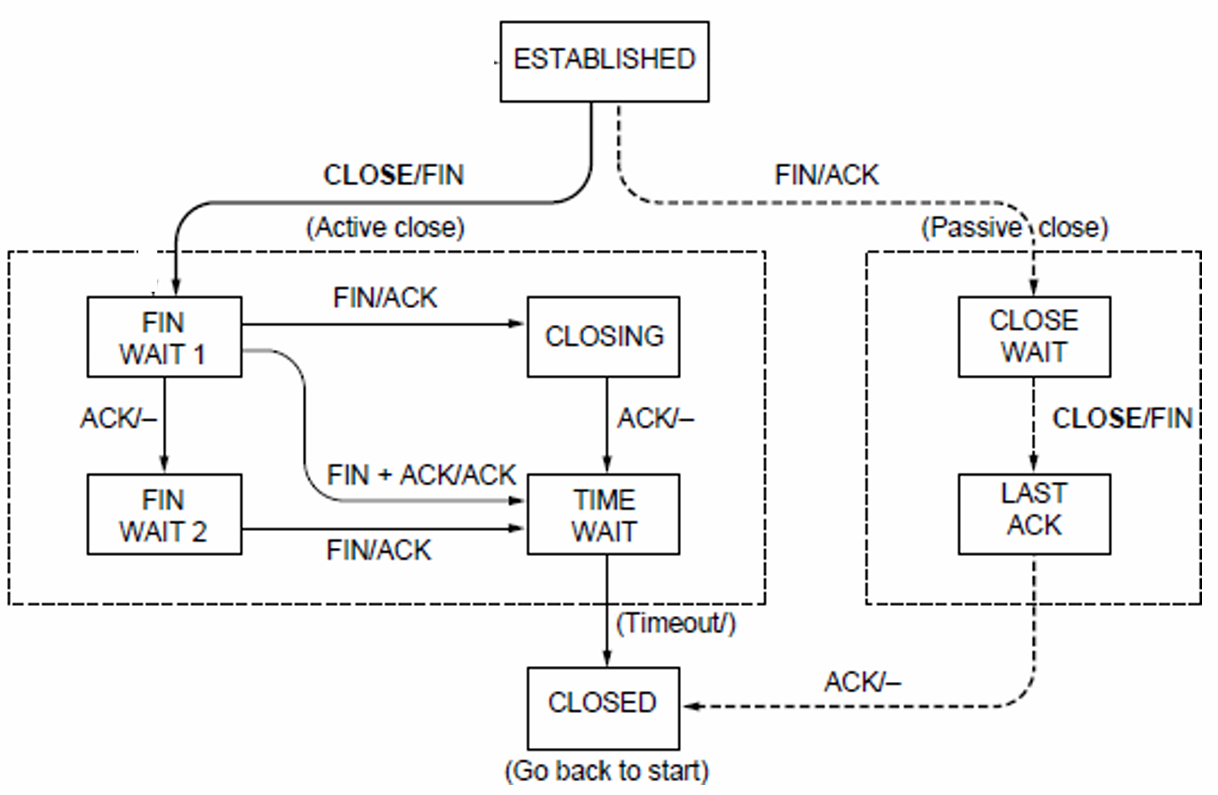

      • Active Closer Path ESTABLISHED → close() → FIN_WAIT_1 → Receive ACK → FIN_WAIT_2 → Receive FIN → TIME_WAIT → Timeout → CLOSED

      • Passive Closer Path ESTABLISHED → Receive FIN → CLOSE_WAIT → close() → LAST_ACK → Receive ACK → CLOSED

      • TIME_WAIT State

        • $2\times \text{MSL}$ (Maximum Segment Lifetime).

        • Lost ACKs can be recovered.

        • Old segments won't confuse new connections.

  • Flow Control (Receiver processing limitation)

    • Automatic Repeat Query

      ARQ with one message at a time is Stop-and-Wait. It allows only a single message to be outstanding from sender.

    • Sliding Window

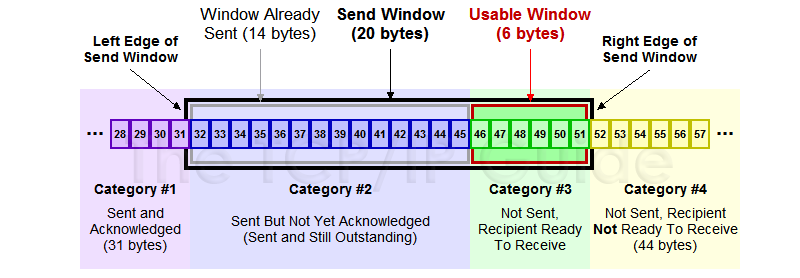

      It allows $W$ outstanding packets, enabling pipelining to send multiple packets per RTT for improved performance.

      Sender buffers up to $W$ segments until they are acknowledged. The last frame sent minus last ack rec'd should no more than $W$.



      • Go-Back-N

        Only buffers next expected packet (LAS). Accepts only sequential packets, discards others, sends cumulative ACK.

      • Selective Repeat

        Buffers entire window. Stores out-of-order packets, sends individual ACKs, retransmits only lost packets.

      • Sequence Number

        $n$ bit counter wraps around at $2^n-1$. Let $\text{LAR}$ be Last Acknowledgement Received, $\text{LAS}$ be Last Acknowledgement Sent.

        Method	Sender's Range	Receiver's Range	Min Number Needed to Avoid Overlap
        Go-Back-N	$[\text{LAR}+1,\text{LAR}+W]$	$\text{LAS}+1$	$W+1$
        Selective Repeat	$[\text{LAR}+1,\text{LAR}+W]$	$[\text{LAS}+1,\text{LAS}+W]$	$2W$

    • Pacing

      • ACK Clocking (sender)

        ACK clocking is a feedback mechanism where the network itself determines the sending pace, preventing queue buildup and ensuring efficient, low-latency data flow.

      • Flow Control (Receiver)

        Flow control uses the WIN field, calculated as WIN = ReceiveBuffer - (LastByteRcvd - LastByteRead), to dynamically limit the sender's window, preventing receiver buffer overflow.

      $\text{SEQ}+\text{length}<\text{ACK}+\text{WIN}$

      • Adaptive Timeout

        Name	Formula
        $\text{SRTT}$ (average round‑trip time)	${\text{SRTT}}_{n+1}=(1-\alpha )\cdot {\text{SRTT}}_n+\alpha \cdot {\text{RTT}}_{n+1}$
        $\text{Svar}$ (variability of RTT)	${\text{Svar}}_{n+1}=(1-\beta )\cdot {\text{Svar}}_n+\beta \cdot \mid {\text{RTT}}_{n+1}-{\text{SRTT}}_{n+1}\mid$
        $\text{Timeout}$	${\text{Timeout}}_n={\text{SRTT}}_n+4\cdot {\text{Svar}}_n$

  • Congestion Control (Network capacity limitation) TCP congestion control uses a sliding window (cwnd), interprets packet loss as a congestion signal, and adjusts the window via AIMD to achieve an efficient and roughly fair bandwidth allocation.

    • Max-Min fairness

      Increse the rate of one flow will decrease the rate of a smaller flow.

      Step 1 Initialize all flows at zero
      Step 2 Increase all flows equally
      Step 3 Freeze bottlenecked flows
      Step 4 Repeat for remaining flows

    • Bandwidth allocation

      Network layer provides direct feedback & Transport layer reduces load [Network is distributed, no single party has an overall picture of its state.]

      • Models

        • Open loop [reserve] & Closed loop [use feedback to adjust rates]

        • Host support & Network support

        • Window based & Rate based

        TCP is a closed loop,host-driven, and window-based

      • AIMD(Additive Increase Multiplicative Decrease)

        • Hosts additively increase rate while network not congested

        • Hosts multiplicatively decrease rate when congested

    • TCP Tahoe/Reno



      • Slow Start

        For each ACK received: $\text{cwnd}=\text{cwnd}+1$, $\text{cwnd}$ doubles every RTT.

      • Later Additive Increase (AI)

        For each ACK received: $\text{cwnd}\leftarrow \text{cwnd}+\frac{1}{\text{cwnd}}$, roughly adds 1 packet per RTT.

      • Switching Threshold (Initially Infinity)

        Switch to AI when When $\text{cwnd}>\text{ssthresh}$, and $\text{ssthresh}=\frac{\text{cwnd}}{2}$ after loss. Begin with slow start after timeout ($\text{cwnd}=1$).

      • Fast Retransmit

        TCP's cumulative ACKs allow duplicate ACKs to signal lost packets for fast retransmission.(Treat three duplicate ACKs as a loss.)

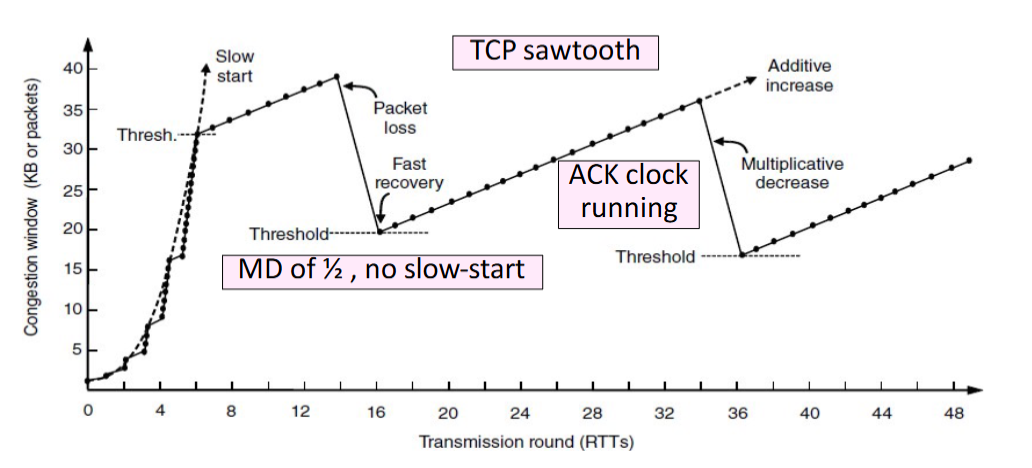

      • Fast Recovery (TCP Reno)

        Fast recovery keeps data flowing during retransmission by maintaining the ACK clock. It avoids resetting to Slow Start after packet loss. Set $\text{ssthresh}=\frac{\text{cwnd}}{2}$ and then continue AI directly.

UDP & TCP

Socket

An endpoint for network communication that allows an application to attach to a specific port on the local network interface, enabling data exchange with other applications across the network.

• Process

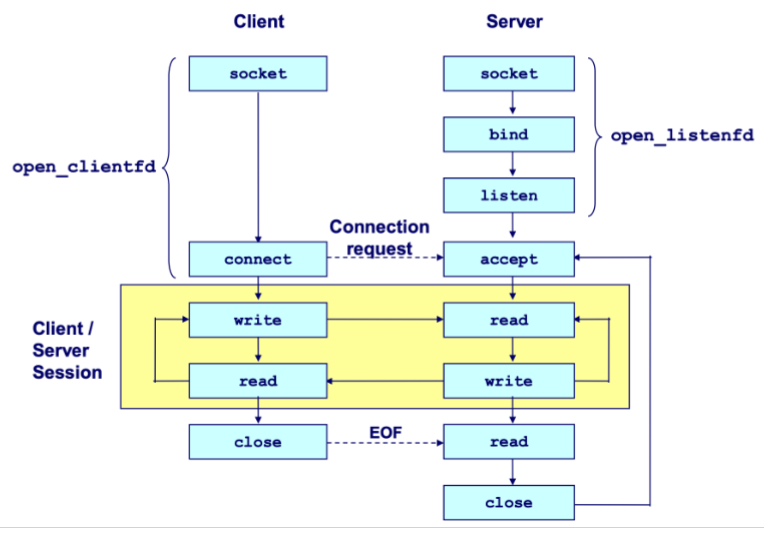

  Cilent socket () ------------------------> connect () -> I/O -> close ()

  Server socket () -> bind () -> listen () -> accept () -> I/O -> close ()

  1. The server blocks in accept() on listenfd for incoming connections.

  2. The client calls connect() to initiate the TCP handshake, which also blocks.

  3. Upon completion, the server's accept() returns a connfd and the client's connect() returns, establishing a bidirectional channel between clientfd and connfd.

• Create int socket (int domain, int type, int protocol);

  • domain AF_INET IPv4 / AF_INET6 IPv6.

  • type SOCK_STREAM TCP / SOCK_DGRAM UDP.

  • protocol 0 (automatically select the default protocol).

• Bind int bind (int sockfd, sockaddr *addr, socklen_t addrlen);

  When a server binds a socket to a specific address, it establishes that data arriving at that address is read from this socket, and data written to this socket is sent from that address.

  • socket address

    struct sockaddr
    {
        uint_16 ss_family; // protocol family
        char ss_data[14]; // address data
    }


  • sockaddr_in

    struct sockaddr_in
    {
        uint16_t sin_family; // always AF_INET
        uint16_t sin_port; // in network byte order
        struct in_addr sin_addr; // in network byte order
        unsigned char sin_zero[8]; // pad to sizeof (struct sockaddr), placeholder
    }


    Network data is transmitted in big-endian byte order. Use htons() and htonl() to convert host-ordered values into network-ordered short and long integers, respectively.

• Listen int listen (int sockfd, int backlog);

  listen () transforms a socket descriptor into a listening socket capable of accepting client connections. The backlog parameter suggests how many pending connections the kernel may queue before refusing new requests (typically around 128).

• Accept int accpet (int listenfd, sockaddr *addr, int *addrlen);

  accept() blocks until a client connects via listenfd, stores the client's address in addr, and returns a connfd for communication using standard Unix I/O functions.

• Connect int connect (int clientfd, sockaddr *addr, socklen_t addrlen);

  Attempts to establish a connection with server at socket address addr.

  To convert a string-formatted IP address (e.g., SERVER_IP), use inet_pton (int af, const char *src, void *dst) to transform it into binary network format.

  Feature	listenfd	connfd
  Purpose	Accepts connection requests	Handles data exchange with a client
  Creation	Once at server start	Per accepted connection
  Lifetime	Entire server runtime	Duration of client service
  Quantity	One per port	One per active client
  Concurrent Use	Listens for all clients	Dedicated to single client

• Send and Receive

  ssize_t read (int fd, void *buf, size_t len); returns the number of bytes actually read (0 indicates the connection is closed, -1 indicates an error).

  ssize_t write (int fa, const void *buf, size_t len); returns the number of bytes actually written (-1 indicates an error).

• Close int close (int sockfd)

• Concurrency

  • Threading/Process Race conditions increase complexity!

  • I/O Multiplexing

    • select()

    • poll()

      poll() is a system call used to monitor multiple file descriptors concurrently for I/O readiness. Unlike select(), it imposes no fixed limit on the number of file descriptors that can be monitored.

      struct pollfd
      {
          int fd; // file descriptor
          short events; // requested events
          short revents; // returned events
      }


Network Layer

Internet Protocol (IP)

• IPV4 Header

0                   1                   2                   3
0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1 2 3 4 5 6 7 8 9 0 1
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|Version| IHL   |Type of Service|        Total Length (16)      | ← Basic identification (IHL : Header)
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|        Identification (16)    |Flags|   Fragment Offset (13)  | ← Fragmentation control
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|  Time to Live |    Protocol   |        Header Checksum (16)   | ← Routing & integrity (Time to Live : TTL)
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                       Source Address (32)                     | ← Sender IP
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Destination Address (32)                   | ← Receiver IP
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                    Options (if any, variable)                 | ← Optional features
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+
|                           Payload (Data)                      |
+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+-+

• IP Addresses An IP address is assigned to each network interface. Consequently, routers possess multiple interfaces, while most hosts have just one or two (wired and wireless).

• IP Prefixes In a prefix of length L, the top L bits are identical across all addresses. In CIDR notation, such a prefix is denoted as IP address/prefix length (e.g. 128.13.0.0/16 is 128.13.0.0 to 128.13.255.255.)

• IP Forwarding It uses longest prefix matching to select the most specific route.

• IP fragmentation

  • MTU Max Transfer Size
  • MSS Maximum Segment Size


  Each fragment is encapsulated with its own IP header.

  Field	Size (bits)	Purpose
  Identification	16	Unique identifier for the original datagram; all fragments of the same datagram share this value.
  Flags	3	Control bits for fragmentation DF (Don't Fragment) If set 1, routers must not fragment the packet. MF (More Fragments) If set 1, more fragments follow, otherwise indicates that it is the last fragment.
  Fragment Offset	13	Indicates the position of this fragment's data in 8‑byte units relative to the start of the original datagram.

Dynamic Host Configuration Protocol (DHCP) [Application Layer]

Uses UDP ports 67 (server) and 68 (client).

Address Resolution Protocol (ARP)

Every network device possesses a unique MAC (Media Access Control) address, which operates at the link layer.

ARP resolves IP to MAC addresses locally. A node broadcasts an ARP request, receives a private reply, and caches the mapping in its ARP table.

Internet Control Message Protocol (ICMP)

When an error occurs, an ICMP error report is sent back to the source IP address and the problematic packet is discarded. The source host must then rectify the issue.

• Message Format

  • IP Header Src = router, Dst = A, Protocol = 1

  • ICMP Header Type = X, Code = Y

  • ICMP Data Src = A, Dst = B, ...

• Type

• Traceroute

Traceroute sends probe packets with incrementing TTL. Each router that decrements TTL to zero replies with an ICMP Time Exceeded error, revealing its address.

Network Address Translation (NAT)

NAT maps multiple private IP:port pairs to a single public IP with unique external ports via a stateful translation table, enabling many internal devices to share one external address.

Routing and Forwarding

• Fully Distributed Routing

  • No central controller All routers are equal and make independent decisions.
  • Local knowledge only Routers learn about the network by exchanging messages with directly connected neighbors.
  • Concurrent operation
  • Failure tolerance There may be node/link/message failures.

• Hierarchical Routing

  Introduce a larger routing unit. Route first to the region, then to the IP prefix within the region.

  • Routing Table

    • Static Routing
    • Dynamic Routing RIP (Routing Information Protocol), OSPF (Open Shortest Path First), BGP (Border Gateway Protocol).

  • IP Prefix Aggregation and Subnets (Longest prefix matching)

    Routers can change prefix lengths without affecting hosts.

    • Subnetting Split large prefix into smaller ones internally.
    • Aggregation Join small prefixes into one large prefix externally.

Routing

• Sink Tree

  Sink tree for a destination is the union of all shortest paths towards the destination. Each node only stores next hop (parent) towards root.

• Distance Vector Routing

  Each node shares distance vectors with neighbors, updates paths using shortest heard distance, and forwards via best next hop.

  Slow convergence, count-to-infinity, and routing loops occur because nodes only know neighbor info, not full topology, causing outdated routes to propagate and persist.

  • RIP (Routing Information Protocol)

• Link-State Routing

  • Flooding
    • Send an incoming message on to all other neigbors.
    • Remember the message so that it is only flooded once.
  • Dijkstra

Application Layer

Peer to Peer

Leverage peer resources: computation, storage, bandwidth. Also emerging: mobility, coins (tokens), sensors. Decentralized, scalable architecture.

Storage networks replicate files anywhere, making search difficult, especially with node churn.

• Framework

  • Join How to start participating
  • Publish How to advertise files
  • Search How to find files
  • Fetch How to retrieve files

• Napster

  Server does all porcessing & Server maintains $O(N)$ state & Single point of failure

  • Join Client contacts central server on startup
  • Publish Reports list of files to central server
  • Search Query server → returns peer storing requested file
  • Fetch Get file directly from peer

• Gnutella

  Complete decentralization & Query flooding

  Search scope is $O(N)$ & Unpredictable search time & No guarantee of finding files (TTL-limited search only works well for haystacks)

  • Join Client contacts a few existing nodes on startup → these become its "neighbors"
  • Publish No need (no central index)
  • Search Ask neighbors → neighbors ask their neighbors → when/if found, reply back along the path; TTL limits propagation
  • Fetch Get file directly from peer

• Gnutella/KaZaA [Two-level hierarchy]

  Kept a centralized registration

  Supernodes have better connection to Internet and act as temporary indexing servers for other nodes to help improve the stability fo the network.

  Standard nodes connect to supernodes and report list od files.

• BitTorrent

  Central tracker server needed to bootstrap swarm.

  • File swarming Files split into chunks; download from multiple peers, upload to others simultaneously.
  • Tracker Central server coordinates peers (joins, maintains lists), but doesn't store files.
  • Tit-for-tat Upload to the fastest $N$ peers you download from. Encourages fairness, discourages freeloading.
  • Optimistic unchoke Randomly let new peers download to prevents starvation, discovers better partners.
  • Rarest first Prioritize distributing scarce chunks to improve file availability and resilience.
  • Out-of-band search Find files via Google/torrent sites. Scalable, no single point of failure.

• DHT (Distributed Hash Table)

  Decentralized system using consistent hashing: keys and nodes hashed onto a ring (Chord). Each key stored on its successor node. Finger tables enable $O(\log N)$ lookup (Entry $i$ which starts from $1$ points to the first node on the ring that is $\ge x+2^{i-1}$), improving from naive $O(N)$.

Amazon Dynamo

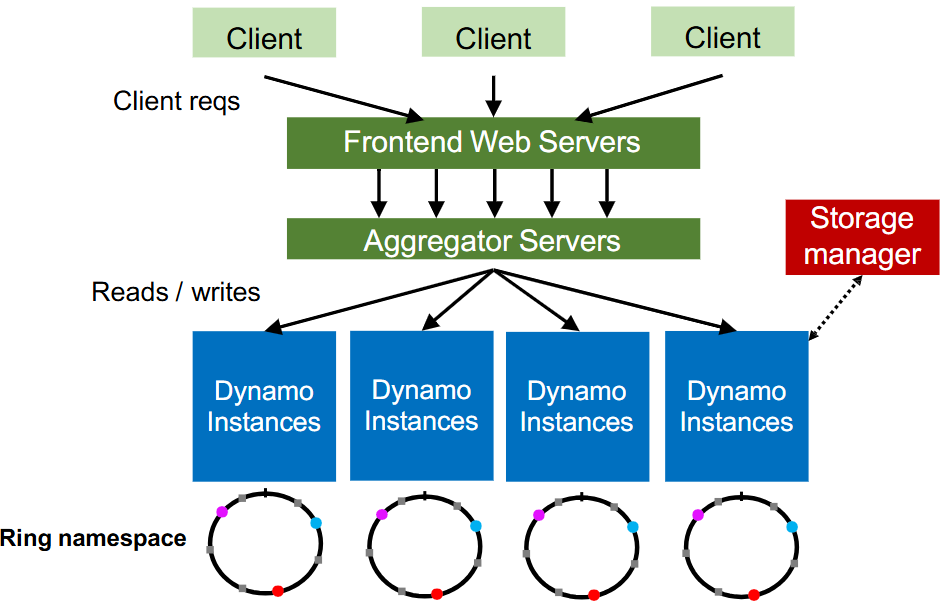

• Architecture



• Partition

  • Hash partitioning partition = hash(key) % partition_count

  • Consistent hashing (better)

  • Virtual nodes (vnodes) Virtual nodes assign multiple ring positions to each physical node, distributing data migration and improving load balancing across all nodes.

  • Heterogeneity More powerful nodes can have more capacity, thus more vnodes.

  • Replication Dynamo skips nodes to ensure replicas reside on different nodes (set Replication Factor, i.e. $RF$).

  • Dynamo Reads/Writes $R/W$ is configurable. When $R+W>RF$, the read and written will overlap, with last write wins (LWW) resolving conflicts.

  • Dynamo API

    • get (k) returns value(s) and context. It returns multiple versions if conflicts exist. The context contains Timestamps to track version history.
    • put (k,context,value) uses the provided context to indicate which previous version(s) this new version supersedes or merges.

HyperText Transfer Protocol (HTTP)

• Request

• Response

• Page Load Time (PLT)

  PLT measures web performance from click to page visible, influenced by page structure, HTTP/TCP protocols, and network RTT/bandwidth.

  HTTP/1.0 used one TCP connection per web resource.

  • Parallel Connections Browser runs multiple parallel HTTP instances, pulls in completion time of last fetch.

  • Persistent Connections Parallel connections compete with each other for network resources. Make one TCP connection to one server and use it multiple HTTP requests.

• Web Caching and Proxies

  • Cached Content

    • Locally expiry information (expires header) & heuristics (cacheable, fresh, not modified recently) [Content is then available right away]
    • Server Last-Modified header & ETag” header [Content is available after 1 RTT (if connection open)]

  • Web Proxies Place intermediary between clients and server.

Domain Name System (DNS)

DNS is a naming service to map between host names and their IP addresses (Distributed directory based on a hierarchical namespace and automated protocol to tie pieces together).

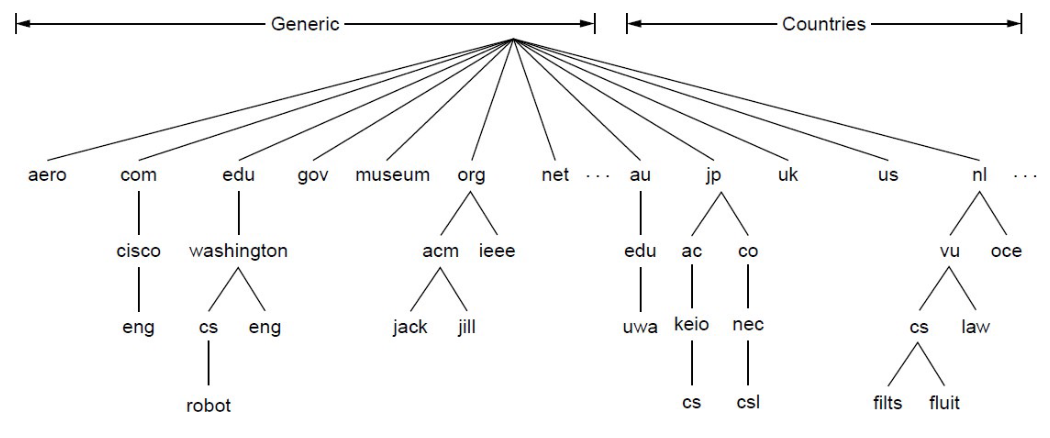

• Top-Level Domains (TLDS)

• DNS Resolution Start with the root nameserver and work down zones.

• Local Nameservers and Root Nameservers

  Local nameservers handle client queries and recursion, while root nameservers direct them to the appropriate top-level domain servers.

  Root (dot) is served by 13 server names (a.root-servers.net to m.root-servers.net)

• Caching Cached data periodically times out (set appropriate TTL).

• DNS Security Extensions (DNSSEC)

  To spoof, Trudy returns a fake DNS response that appears to be true.

  • RRSIG for digital signatures of records
  • DNSKEY for public keys for validation
  • DS for public keys for delegation

Content Delivery Networks (CDNs)

A CDN uses DNS to direct each client to the nearest replica server based on their IP address.

Remote Prcedure Call (RPC)

• Interface description languague Mechanism to pass procedur parameters and return values in a machine-independent way (use IDL compier, marshal and unmarshal).

• At-Least-Once Scheme Upon timeout, the client stub retransmits the request. After several failed attempts, it returns an error.

• At-Most-Once Scheme

  Since identical calls may come from different clients, duplicate detection requires a unique xid per request.

  The client includes "seen all replies $\le x$" with every RPC, allowing the server to discard outdated xids and prevent unbounded state growth.

  A pending flag per executing RPC avoids re-running duplicates.

  To survive crashes, both client and server persist pending/completed RPCs to disk.

• Exactly-Once retransmission (At-Least-Once) + deduplication (At-Most-Once) + persistence on both sides for crash recovery. Limitation: not possible with external physical actions.

Distributed Storage System

• The Google File System (GFS)

  • Target environment

    • Files are huge, but not many.
    • Write once, read many.
    • I/O bandwidth is more important than latency.

    Typical workloads : Bulk Synchronous Processing (BSP).

  • Design Decisions

    • Chunk Use 64MB chunks amortize seek costs, approach disk transfer limits for streaming workloads, and reduce both metadata overhead on the master and RPC overhead for large reads/writes.

    • Replication Replicate each chunk three times across racks, with one replica in the same rack for low write latency and two or more in other racks for fault tolerance against rack-level failures, trading off cross-rack bandwidth.

    • Single master Centralize metadata only to avoid making the master a bottleneck, while keeping data transfer peer-to-peer between clients and chunkservers to maximize throughput and scalability.

    • Record append Support concurrent appends.

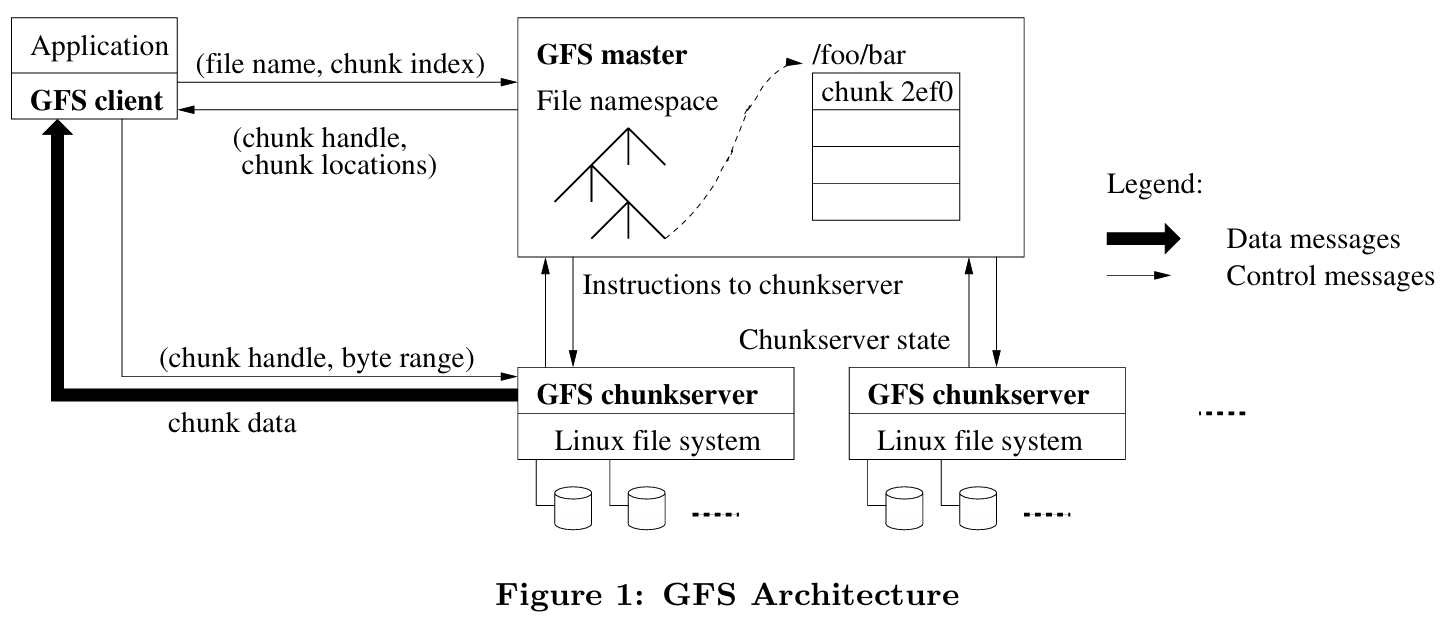

  • General Architecture



    • Single master

      Shadow masters provide read-only access with slightly stale metadata by replicating the primary's operation log, ensuring availability during primary failure.

      GFS prevents master overload by minimizing its involvement: data never passes through it, large chunks reduce metadata ops, and chunk leases delegate write coordination authority to primary replicas.

      Category	Responsibility	Description
      Regular Management	Metadata Storage	Stores namespaces, file-to-chunk mappings, chunk locations in memory.
      	Namespace Locking	Locks directory operations to handle concurrent accesses.
      	Periodic Communication	Heartbeats with chunkservers to monitor health and exchange state.
      	Chunk Lifecycle	Creates chunks (rack-aware); re-replicates when replicas low; rebalances load/space.
      Background Cleanup	Garbage Collection	Logs deletion, renames files as hidden, lazily reclaims space.
      	Stale Replica Deletion	Uses version numbers to detect and remove outdated replicas.

    • Metadata

      • file and chunk namespaces
      • mappings from files to chunks (unique ID)
      • locations of each chunk’s replicas (ask for chunkserver)

    • Chunkserver Chunkservers store 64MB chunks locally with version numbers and checksums while clients read/write via chunk handle and byte range from master without data caching.

    • Client GFS client sends control requests to master, caches metadata, but transfers data directly to/from chunkservers without caching file data.

  • File read and write

    • Read Client asks master for chunk locations, then reads data directly from the nearest chunkserver and returns it to the application (choose one to read).
    • Write Client gets locations, pushes data to all replicas' buffers, then primary serializes writes and coordinates secondaries before acknowledging (write all primary and secondaries).

  • Fault Tolerance

    GFS uses heartbeats to detect failures, reduces replica counts, and re-replicates chunks elsewhere to restore full replication.

Time in Distributed Systems

• Cristian Algorithm

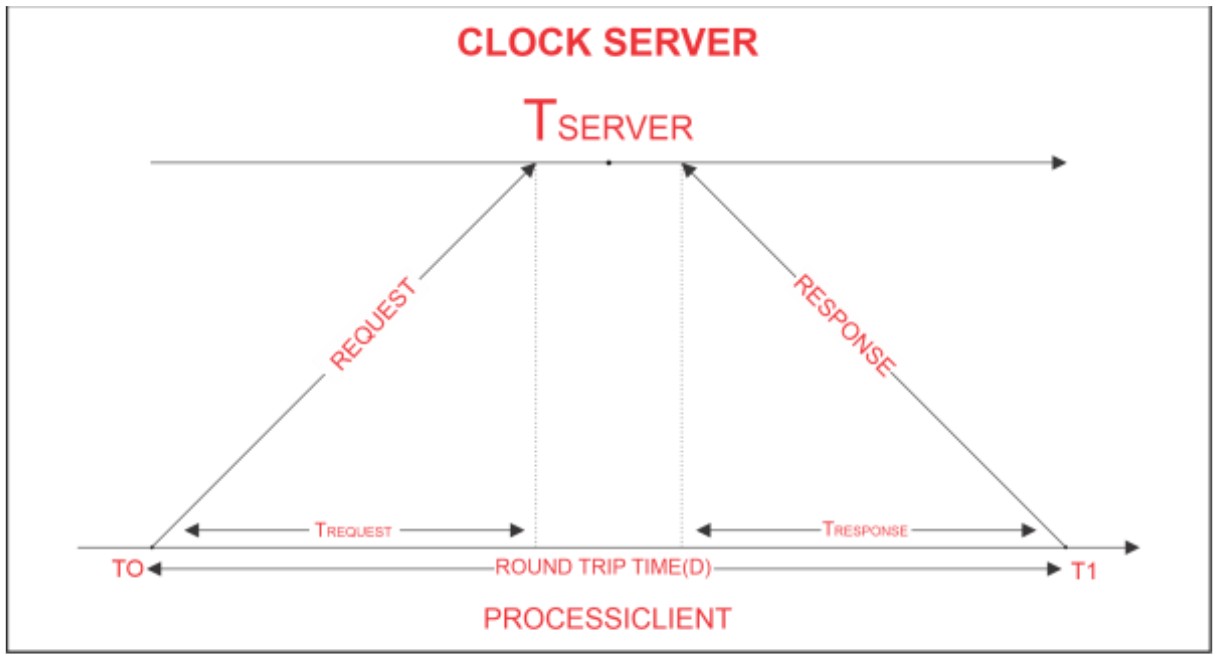

  $T_{client}=T_{server}+\frac{T_1-T_0}{2}$

• The Lamport Clock Algorithm

  Lamport clocks ignore physical time and only capture the happens-before relationship between events.

  Each process $P_i$ maintains a local clock $C_i$. For a local event, $C_i\leftarrow C_i+1$, then $C_{event}=C_i$. When process $P_i$ sending an message $k$, set $C_k=C_i$. When process $P_j$ receives an message $k$, $C_j\leftarrow \max (c_j,c_k)+1$.

  If $a\to b$, then $T_a<T_b$. However, the converse does not hold — Lamport timestamps alone cannot be used to infer causal relationships between events.

• Totally-Ordered Multicast

  Totally-ordered multicast ensures identical processing order. Replicas sort queues by timestamps (dynamically updating the head), broadcast ACKs strictly for this head, and execute it once globally acknowledged.

• Vector clock

  Initially all vectors are $[0,0,\cdots ,0]$.

  For each local event on process $i$, increment local entry $c_i$.

  If process $j$ receives message with vector $[d_1,d_2,\cdots ,d_n]$, then $c_k=\max (c_k,d_k)$, and increment local entry $c_j$.

Parallelism Basics and Collective Communication

• Communication patterns

  • Point-to-point communication
  • Collective communication

• Model

  • Cost of Communication $\alpha +n\beta$ (or $\alpha +Mn\beta$ if a message encounters a link that simulaneously accommodates $M$ messages) ($\alpha$ Latency, $\beta$ Transfer time per byte, $n$ Message size in bytes)
  • Primitive

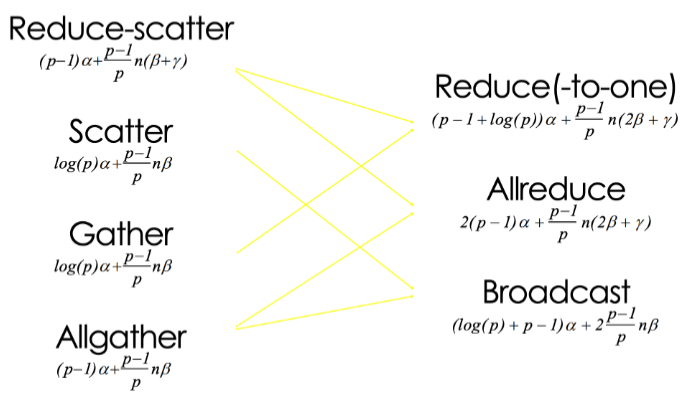

    Primitive	Pattern	Description
    Broadcast	One-to-all	One process sends the same data to all processes
    Reduce(-to-one)	All-to-one	All processes perform a reduction operation (sum, max, etc.) and send the result to one process
    Scatter	One-to-all	One process distributes distinct data chunks to all processes
    Gather	All-to-one	All processes send their data to a single process
    Allgather	All-to-all	All processes collect data from all processes (each process gets the full data set)
    Reduce-scatter	All-to-all	Perform local reduction first, then scatter results (first half of Allreduce)
    Allreduce	All-to-all	All processes perform a reduction operation, and the result is distributed to all processes

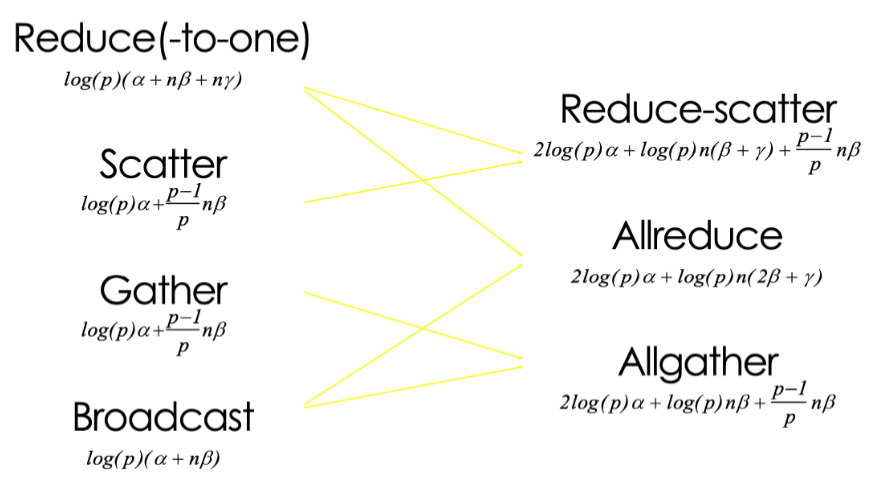

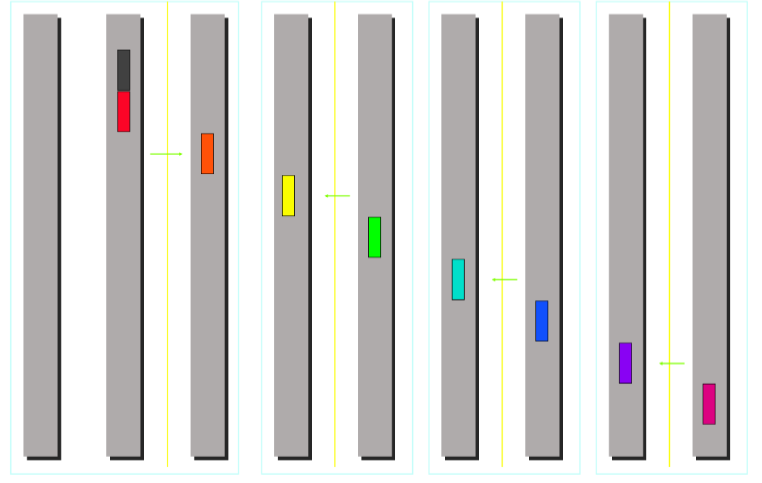

• Minimum Spanning Tree Algorithm (emphasize low latency for small message)

  Recursive halving broadcast splits nodes in half sends to opposite half recurses achieving $\log N$ rounds optimizing latency for small messages.



  Totoal cost:

  • Broadcast $\lceil \log p\rceil (\alpha +n\beta )$
  • Reduce $\lceil \log p\rceil (\alpha +n\beta +n\gamma )$ Compute overhead is required for reduce.
  • Scatter/Gather $\sum _{k=1}^{\lceil \log p\rceil }\alpha +\frac{n}{2^k}\beta =\alpha \lceil \log p\rceil +\frac{p-1}{p}n\beta$

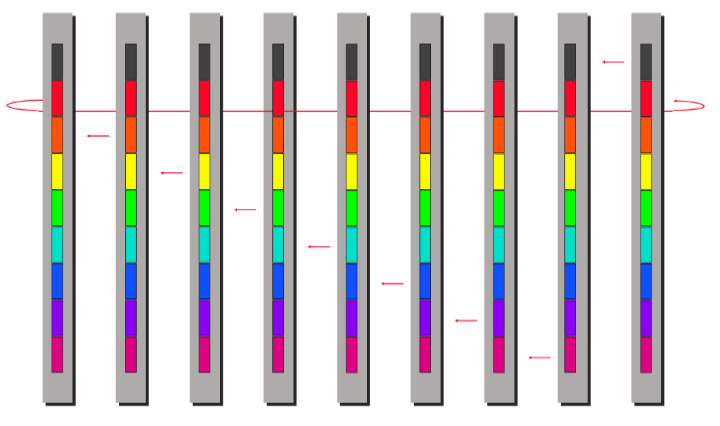

• Ring Algorithm (emphasize bandwidth utilization for large message)

  The bandwidth term $n\beta$ now dominates.



  ring algorithm can not be better for Scatter and Gather.



LLM

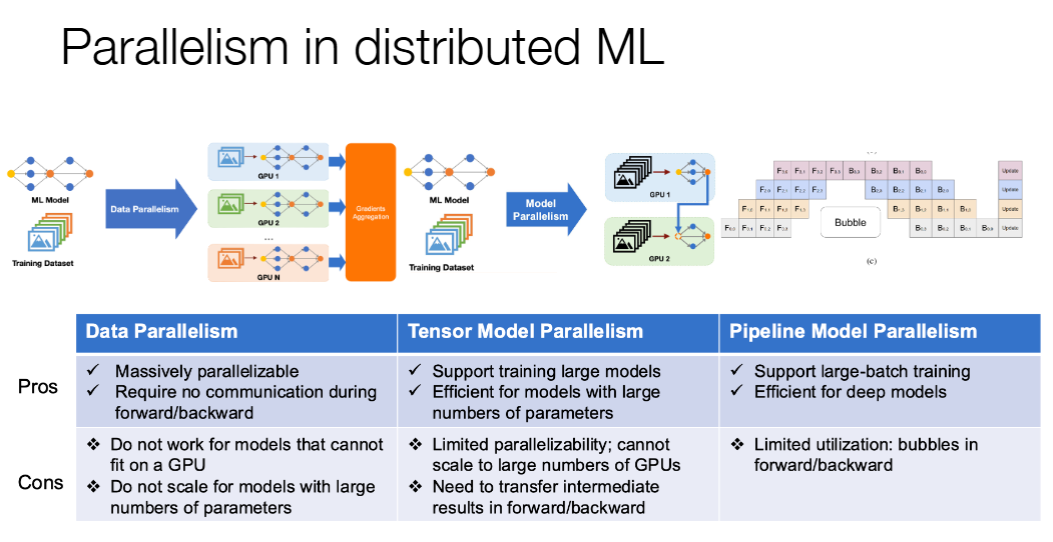

Parallelism in Distributed Machine Learning

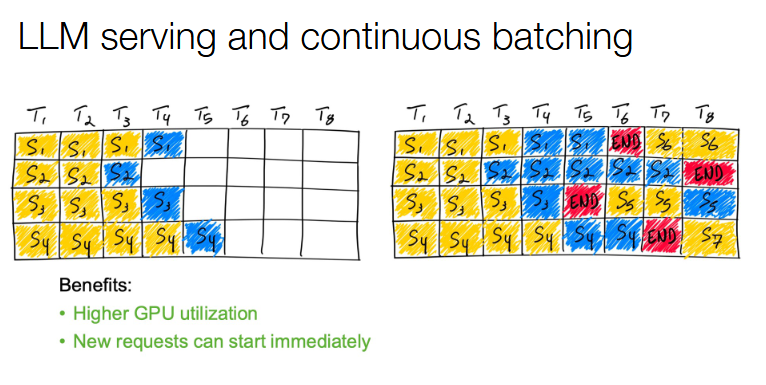

Continuous batching
